How to set up a captive portal with Ruckus/ZoneDirector

Follow these steps to get set up:

Preparation

You will need:

• Access to the Ruckus/ZoneDirector controller
• A splash page already created in your Fydelia account using the Ruckus/ZoneDirector form

Setup

Controller settings:

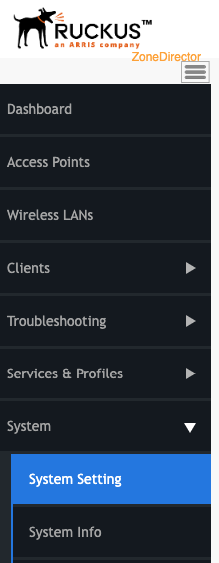

1. Under System, choose "System setting"

Scroll down and open the "Network Management" area:

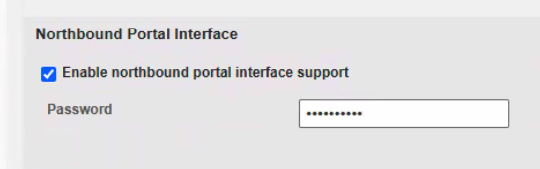

• Enable the Northbound Interface
• Set a northbound secret, which will be used later on the splash page
• Note: no username required for API (For SmartZone there is no user name required but if it is its API)

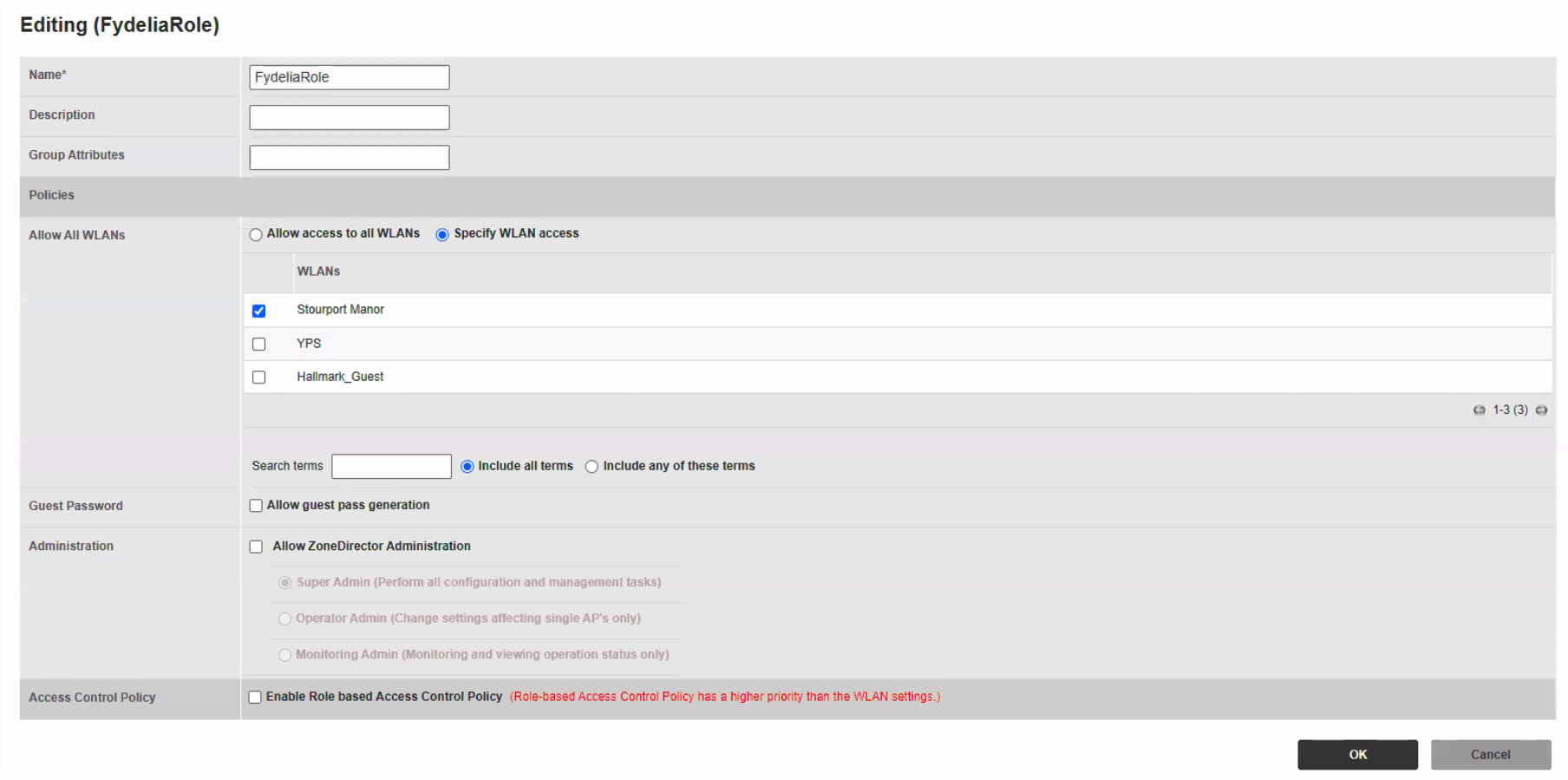

Create a role

Enter Services & Profiles

Click ROLES

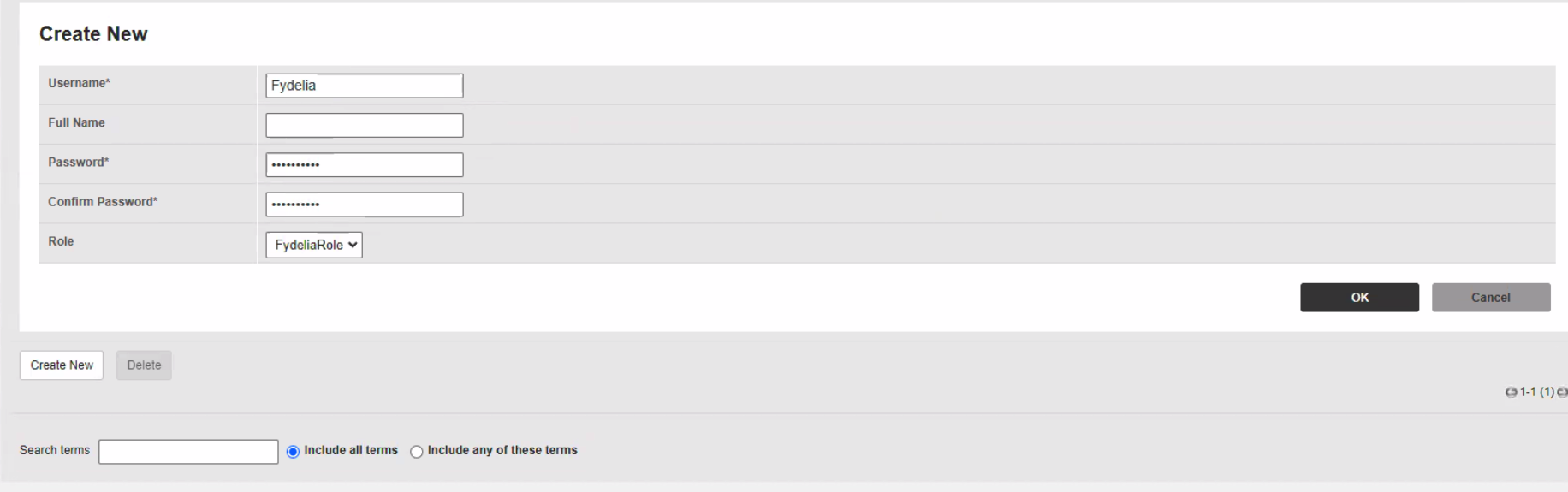

Create a user

Enter Services & Profiles

Click USERS

Radius user used by Splash page needs to be set up as localDB user (On ZD you cannot create a user, you will need to select, a local database under the HotSpot Services Options)

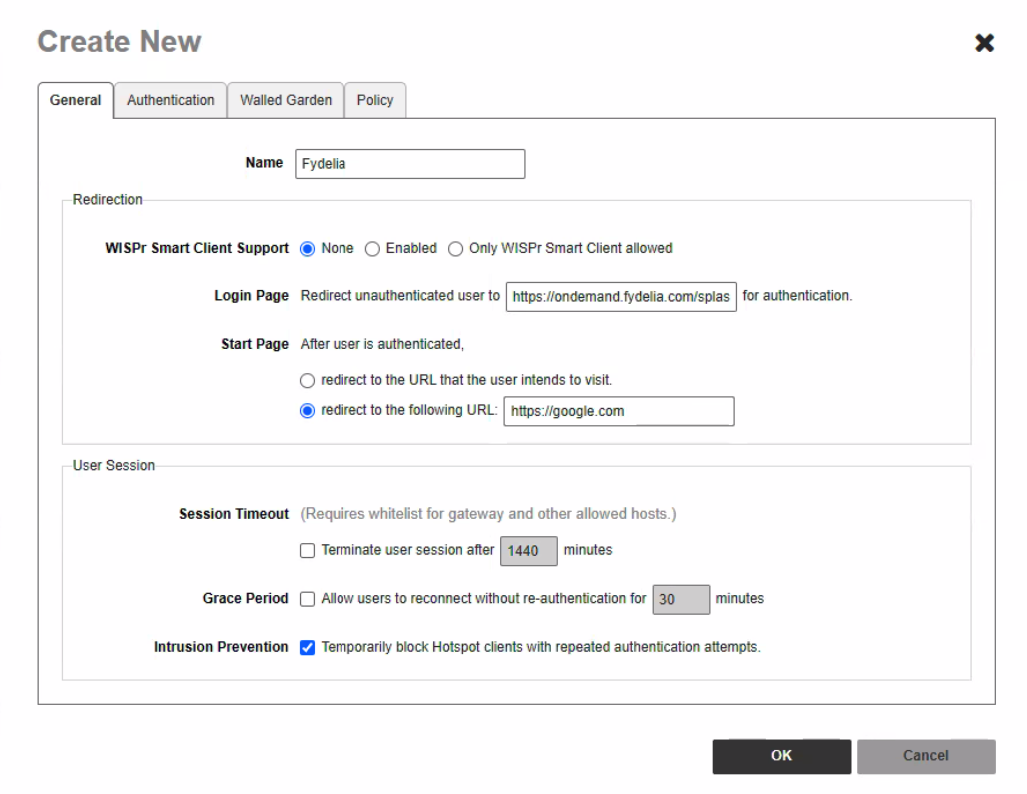

(HotSpot Services) This is where you will configure the HotSpot settings (Set the Authentication/Accounting Servers, and add the Fydelia link to the Wall Garden, smart client support set to none) for the WLAN to use.

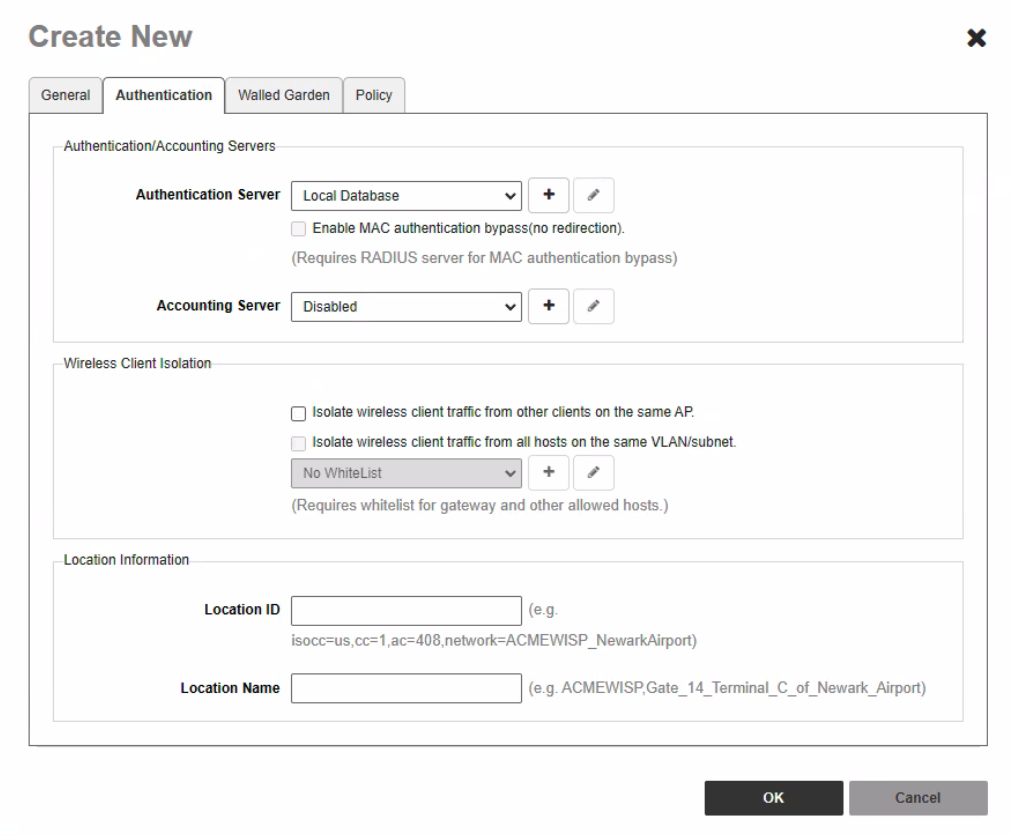

2. Make sure to enable Wireless client isolation:

3. Please ensure that the Wall Garden is populated otherwise the clients won't be able to see the page.

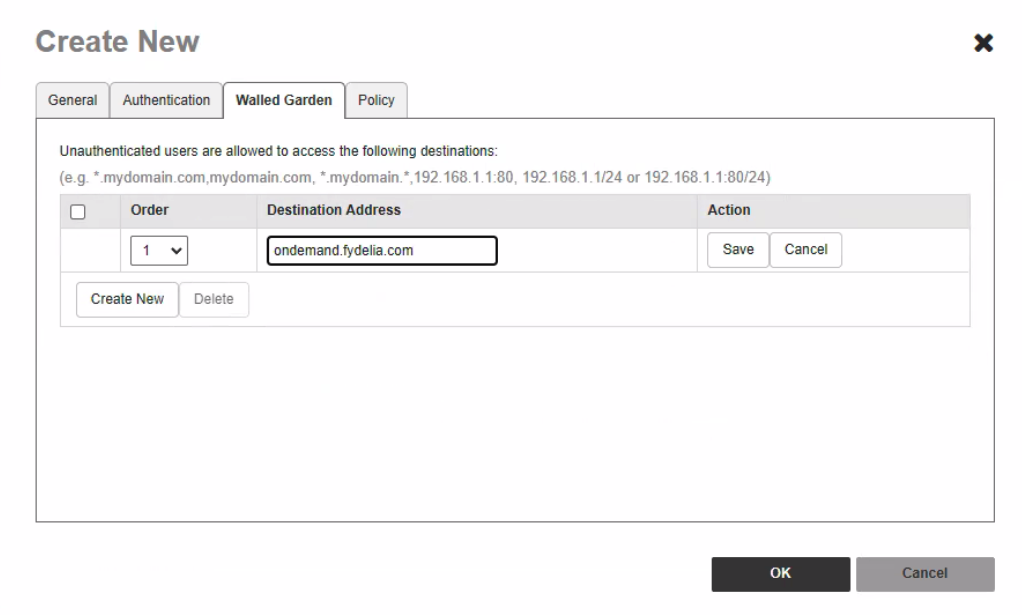

Walled garden

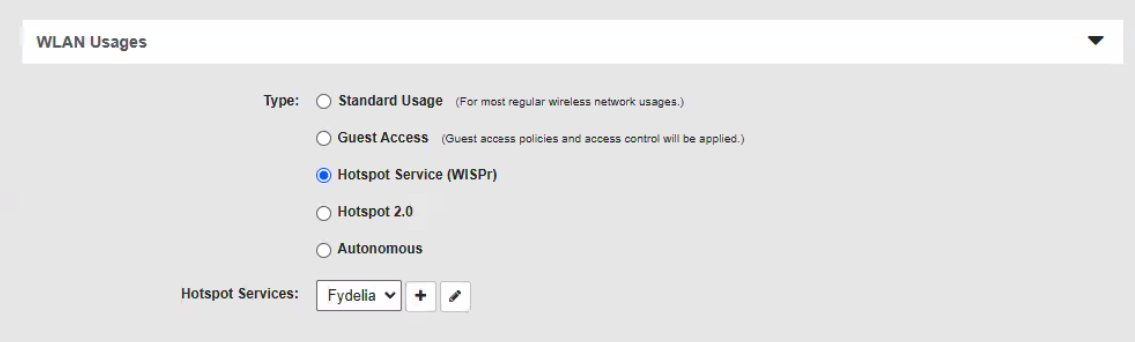

WLAN Usages

NOTE:You will need to add the northbound secret to your Fydelia splash page
