IgniteNet ecCloud External Captive Portal setup
Setup is extremely simple with IgniteNet ecCloud. There are a couple of things to note:
1) Provision to the APs can take several minutes with ecCloud. You may not immediately see your changes
2) This document was created using the Spark Wave 2 AC1200, with firmware version 2.9.8-4594.
When testing with a lower firmware version 2.1.1-3354, testing was not successful, so we strongly recommend keeping up to date with firmware versions.
CREATING THE SSID

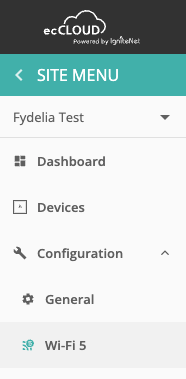

In the configuration menu click WiFi5:

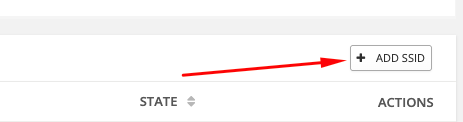

Click ADD SSID

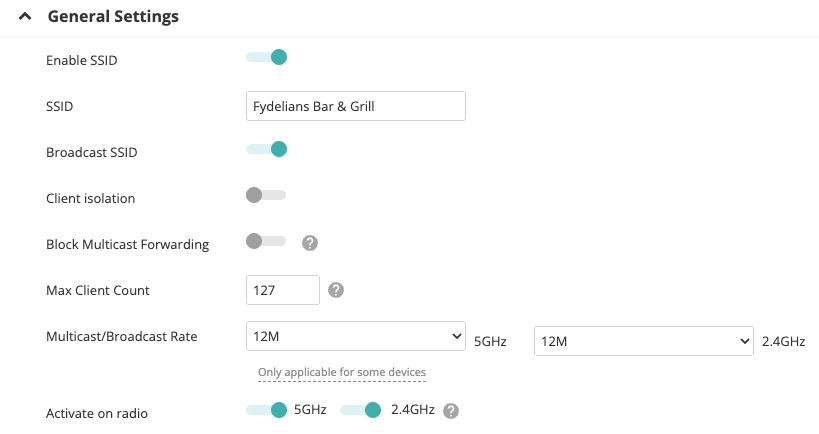

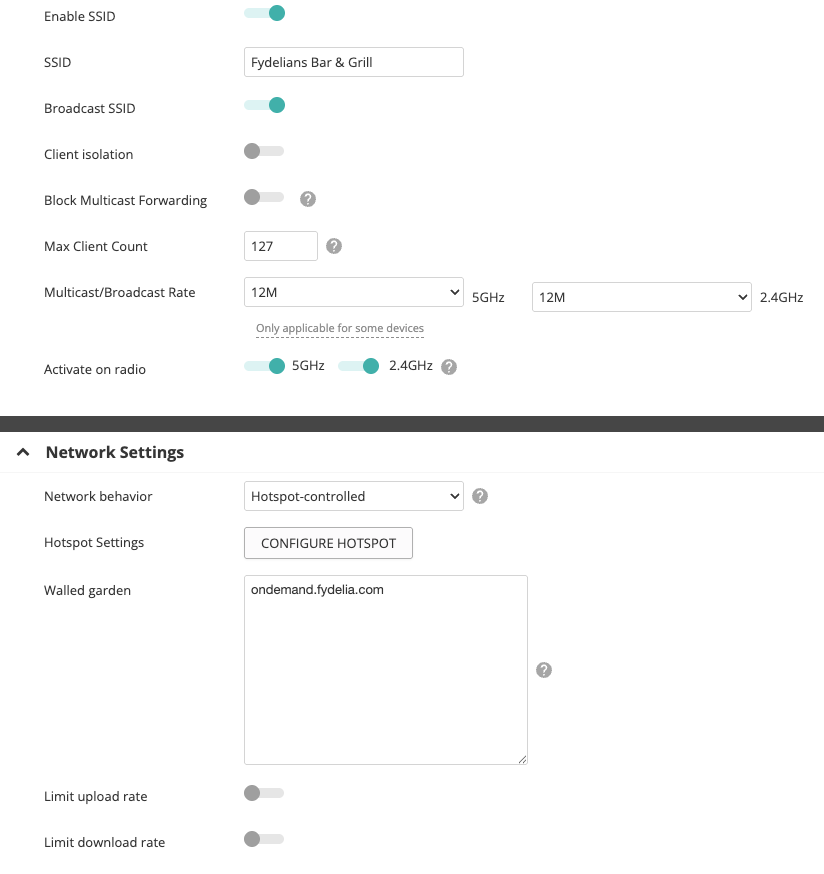

Give your SSID network a name:
In the Network Settings area, choose: Hotspot-controlled
In the walled garden add the fydelia ondemand domain:

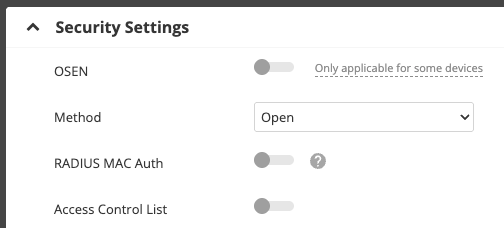

In Security Settings ensure that the method is set to “Open”
CONFIGURING THE HOTSPOT PORTAL

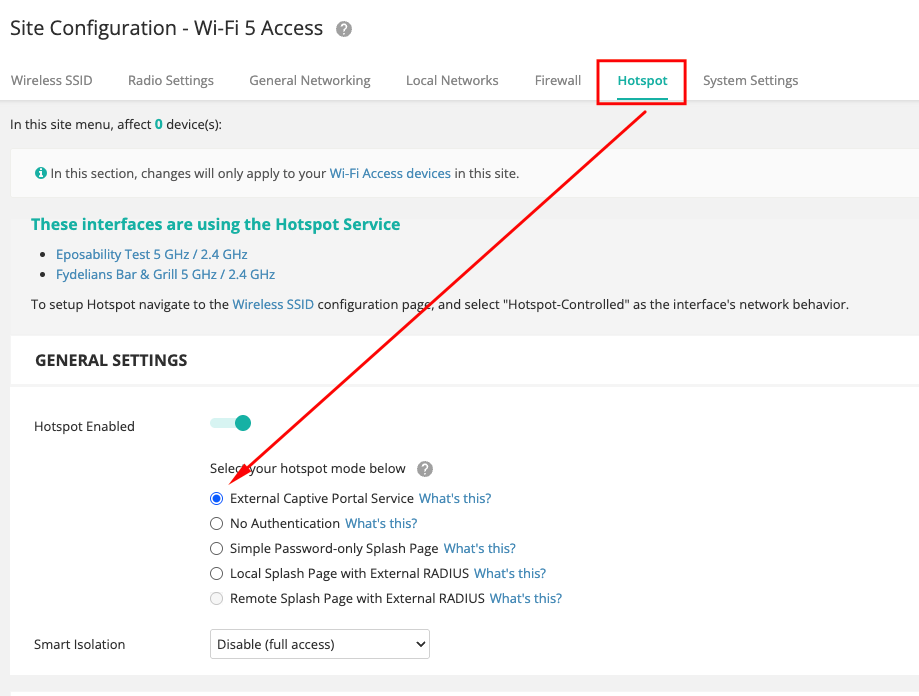

Under the Hotspot menu, select External Captive Portal Service

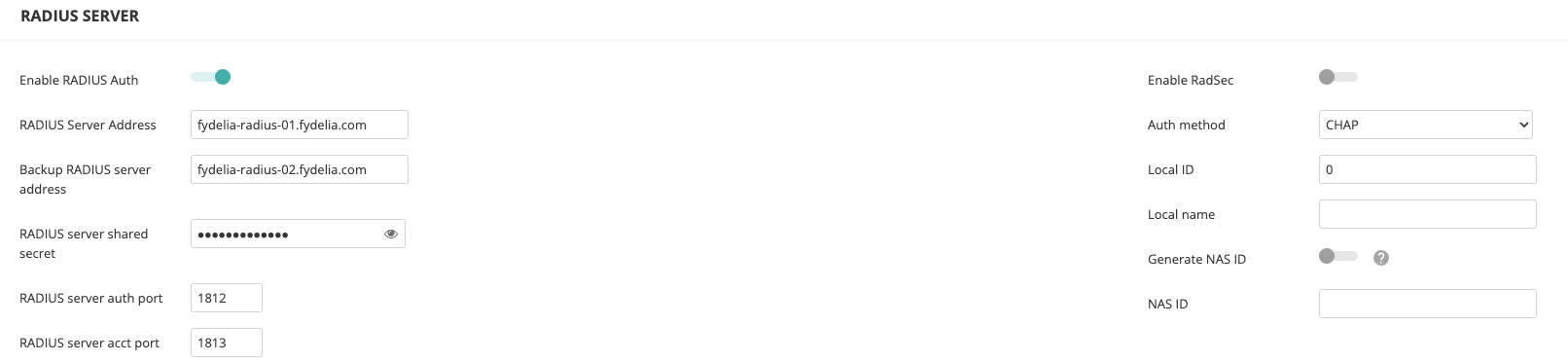

Under RADIUS SERVER enter the Fydelia radius details
The IP and Domains for RADIUS are available ON THIS PAGE
Here’s an example:

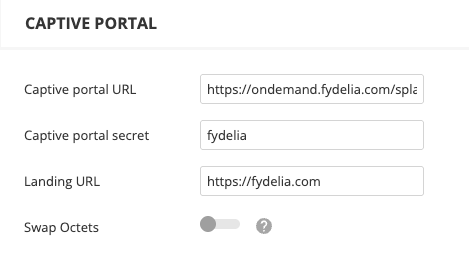

In the CAPTIVE PORTAL area enter the full Captive Portal URL, secret and Landing URL

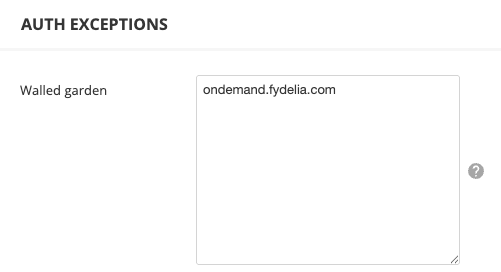

In AUTH EXCEPTIONS enter the required walled garden domains:
And that’s it, you’re all set!
